Flashing Light “Led optic DS200 mm Fresnel”

flashing-light-led-optic-ds200-mm-fresnel2

flashing-light-led-optic-ds200-mm-fresnel1

Description:
200 mm LED high efficiency flashing light for use in work zones, highway, railway, in compliance with UNI EN12352 Class L8H. Designed and manufactured in Europe by the companies of Sisas group. It is made by an innovative PMMA optical assembly consisting of a series of transparent Fresnel lenses that can deflect and diffuse the light to obtain an efficient light output with a reduced number of LEDs.

flashing-light-led-optic-ds200-mm-fresnel3

Strengths:
The 19 power LEDs permit to reach the L8H class of brightness without resorting the use of traditional lamps, so that we can have a reducing power consumption and longer life. Fully programmable by remote control (optional) it offers the possibility to change flashing modes and adjust the brightness in relation to ambient light without any electronic modification and to have a wide range of versions in a single product. The body of only 5.8 cm is made of impact-resistant weatherresistant, with anti-UV material. Thanks to its compact size, it can be used for a wide range of applications (mounted on structures, panels, in road signs) or with the special bracket on poles, cones, W/R panels for sequential system. Silicon o-ring to ensure a perfect IP protection.

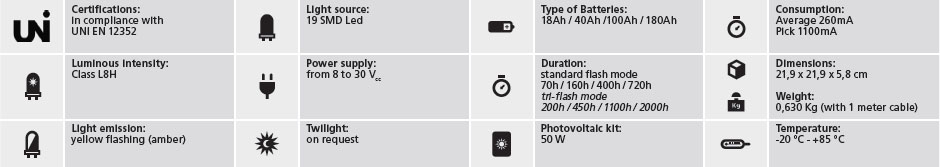

flashing-light-led-optic-ds200-mm-fresnel-table1

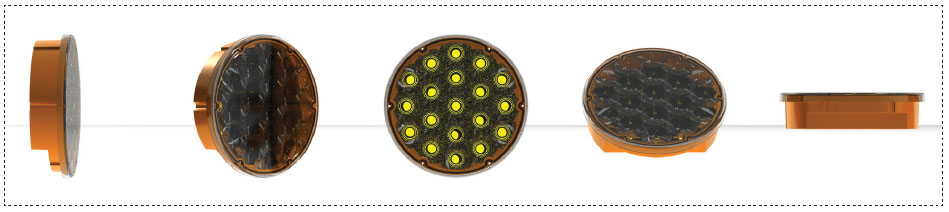

flashing-light-led-optic-ds200-mm-fresnel4

Code Description
201900500 Standard Flashing light DS200 mm single
201900501 Triflash Flashing light DS200 mm single
201900502 Slave light DS200 mm single

led-optics-flashing-modes1

led-optics-flashing-modes2

led-optics-flashing-modes3

led-optics-flashing-modes4
